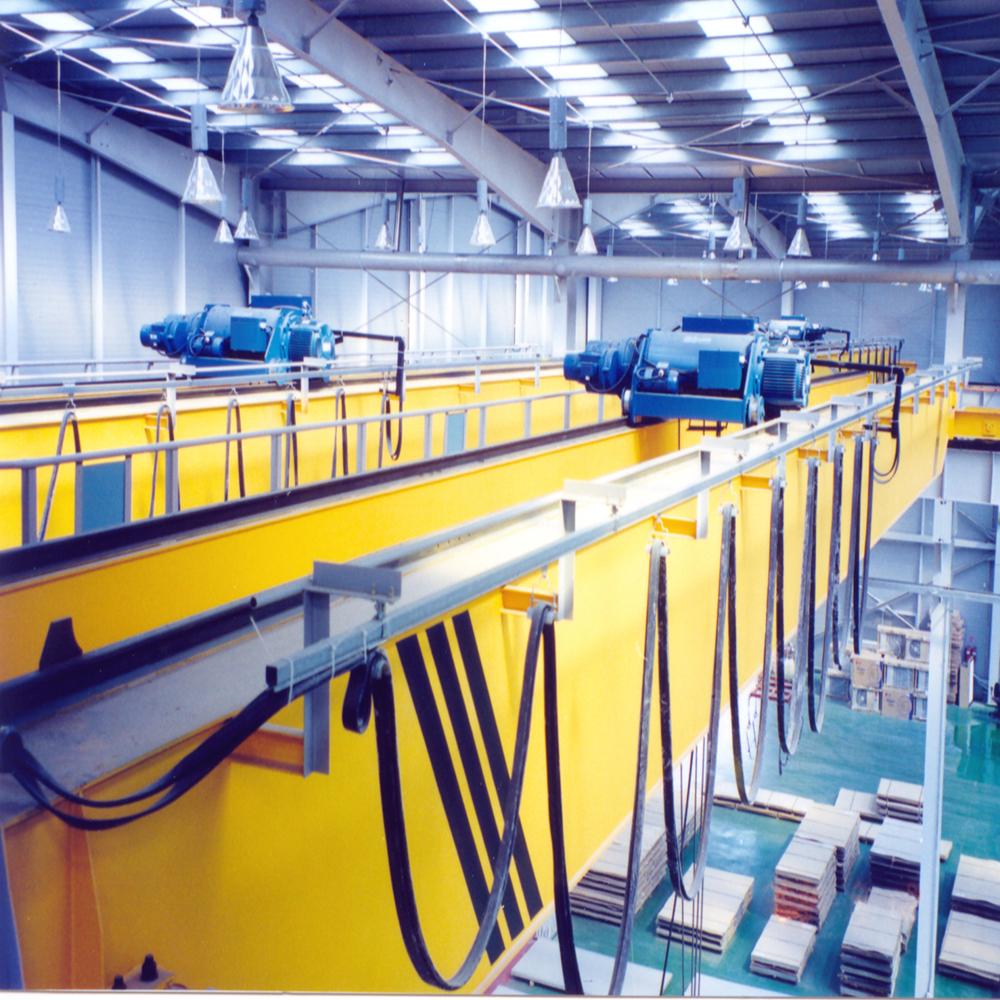

Overhead Traveling Cranes

Product Description

echfil Engineering LLP designs and manufactures robust, high-performance Overhead Cranes tailored to meet the rigorous demands of modern industrial applications. Built to comply with IS 3177, IS 807, and FEM standards, our cranes ensure maximum safety, smooth operation, and long-term reliability.

Available in both Single Girder and Double Girder configurations, our Overhead Cranes are ideal for workshops, fabrication units, warehouses, heavy industries, and manufacturing facilities.

Key Technical Features:

 Capacity Range:  1 Ton to 50 Tons
 Span Lengths:  Up to 30 meters (customizable)
 Lifting Height:  Up to 20 meters or as required
 Duty Class:  Class I to Class IV (Light to Extra Heavy Duty)
 Design Standards:  IS 807, IS 3177, IS 800, IS 3935, FEM 1.001
 Hoisting Options:  Wire Rope Hoist, Chain Hoist, or Electric Winch
 Control:  Pendant Control / Radio Remote Control / Cabin Control
 End Carriages:  Machined for precision travel, forged wheels with bearings
 Power Supply:  DSL System / Cable Reeling Drum / Festoon System

Structural Highlights:

• Bridge Girders:  Fabricated from IS-grade steel or NPB sections, stress-relieved for high durability

• End Carriages:  Integrated with precision-machined wheels made of EN8/EN9 hardened steel

• Long Travel Drives:  Dual-speed motors with brake systems for smooth motion

• Painting & Coating:  Dual-layer epoxy primer + polyurethane topcoat for long-lasting protection

Why Choose Techfil Overhead Cranes?

Tailor-made designs for your specific workflow
Superior component quality with BBL, Siemens, Schneider, etc.
Extended lifespan with minimal maintenance
Designed for continuous operation in harsh environments
Quick delivery & expert installation
Backed by solid service support & warranty
